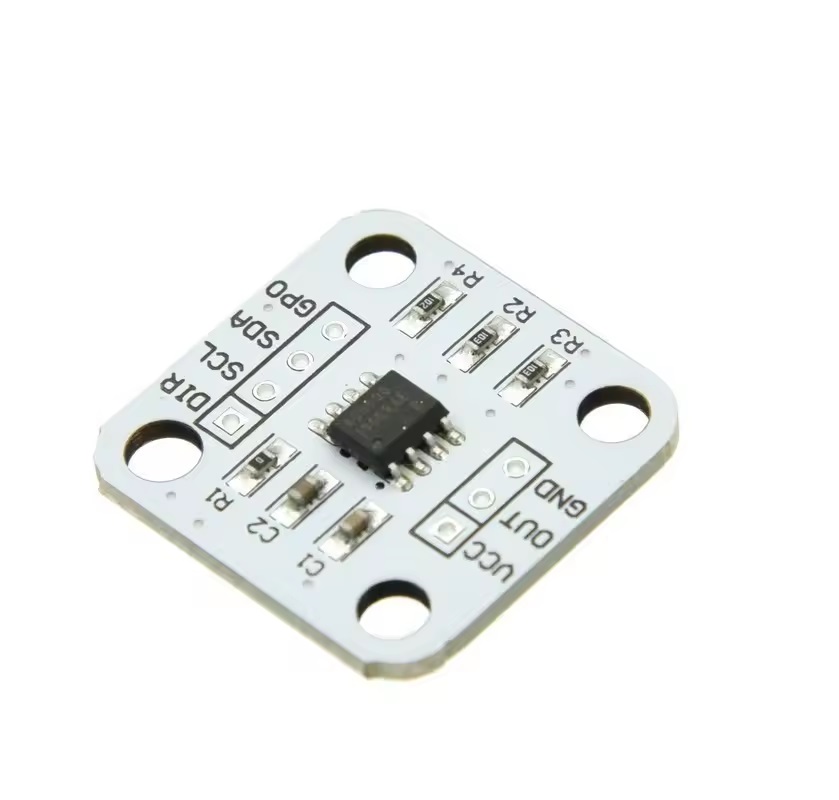

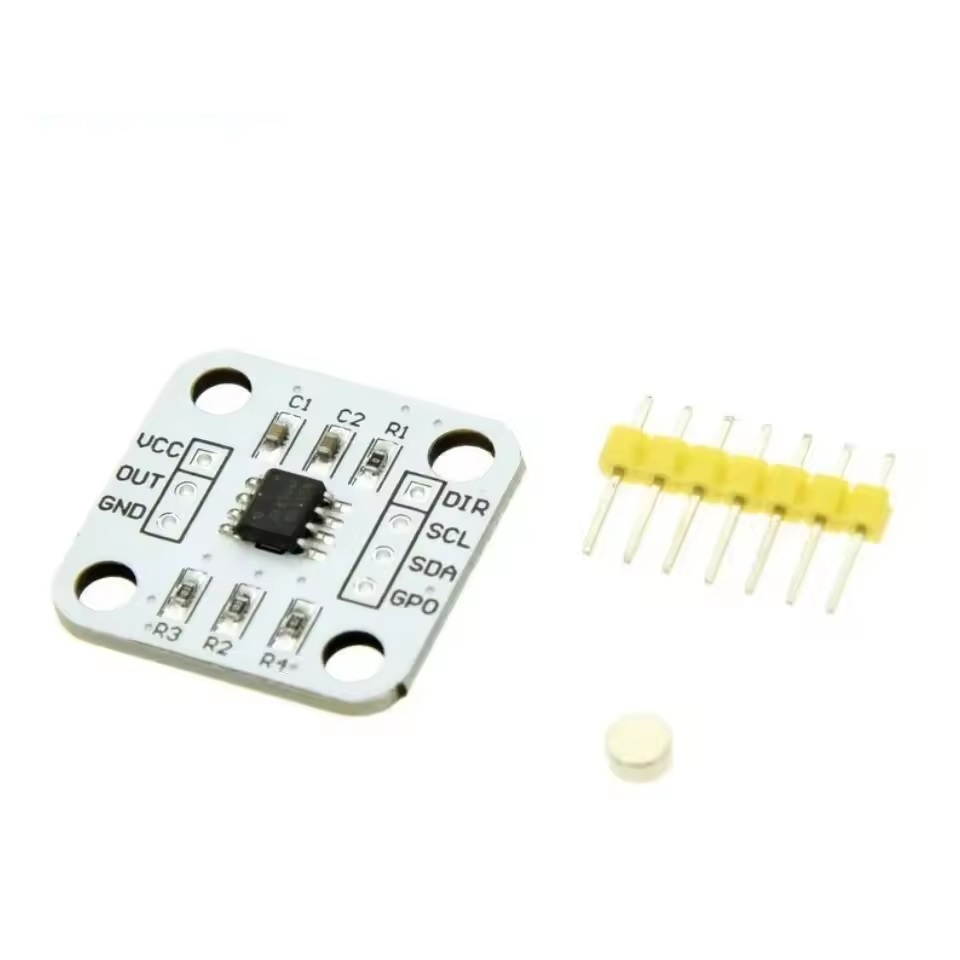

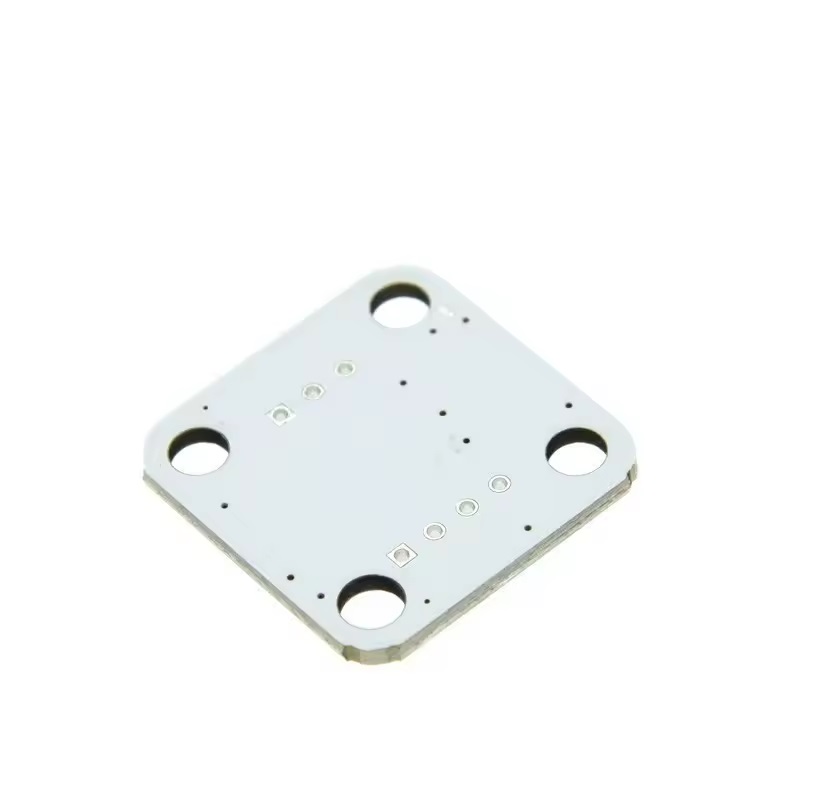

AS5600 Magnetic Encoder Sensor Module – 12bit High Precision
Introducing the AS5600 Magnetic Encoder Sensor Module, an advanced non-contact magnetic induction angle measurement module offering superior accuracy and ease of use in various applications.
Key Features:
- High Precision Measurement: 12-bit resolution ensuring reliable and accurate angle detection.
- Versatile Output Modes: Supports multiple outputs including I2C, PWM, and Voltage.
- Non-contact Technology: Measures the absolute angle of a diametrically magnetized on-axis magnet without physical contact.
- Robust Design: Designed to withstand external stray magnetic fields, enhancing durability and performance.
- Easy Programming: Industry-standard I²C interface for simple programming of non-volatile parameters.
- Flexible Voltage Supply: Compatible with 3.3V or 5V supply voltage.

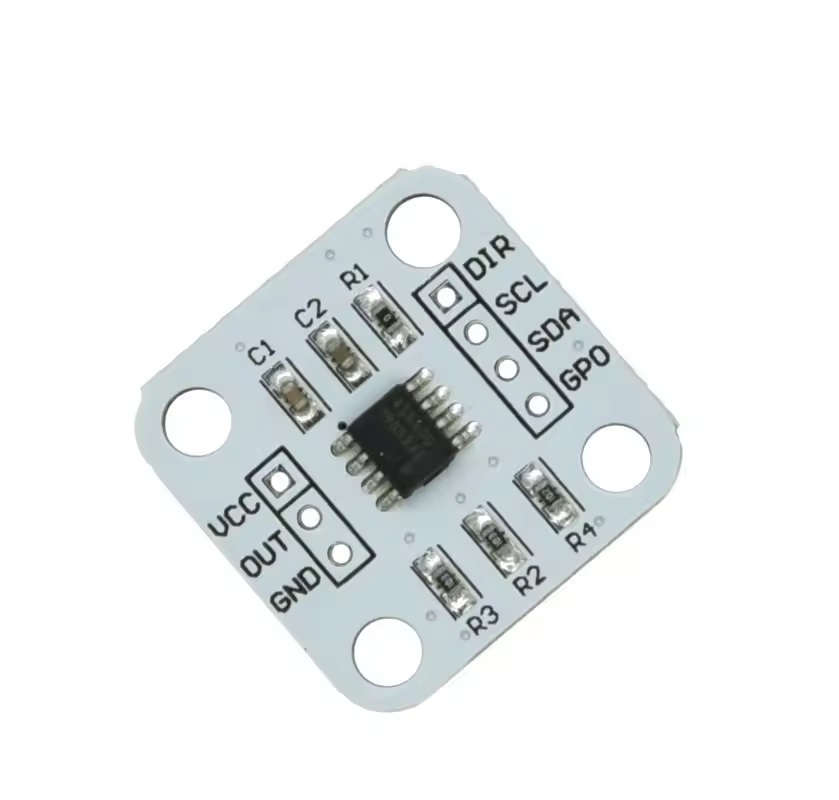

Pin Out Information:
| Pin | Name | Type | Description |
|---|---|---|---|
| 1 | VDD5V | Supply | 5V positive voltage supply (100nF decoupling capacitor required) |
| 2 | VDD3V3 | Supply | 3.3V positive voltage supply (1-μF decoupling capacitor needed in 5V mode) |
| 3 | OUT | Analog/Digital Output | Analog/PWM output |
| 4 | GND | Supply | Ground |
| 5 | PGO | Digital Input | Program option (internal pull-up, connect to GND for Programming Option B) |
| 6 | SDA | Digital Input/Output | I²C Data (external pull-up recommended) |
| 7 | SCL | Digital Input | I²C Clock (external pull-up recommended) |
| 8 | DIR | Digital Input | Direction polarity (Connect to GND for clockwise, VDD for counterclockwise) |
This module is ideal for DIY enthusiasts and engineers in robotics, automotive systems, consumer electronics, and more!
