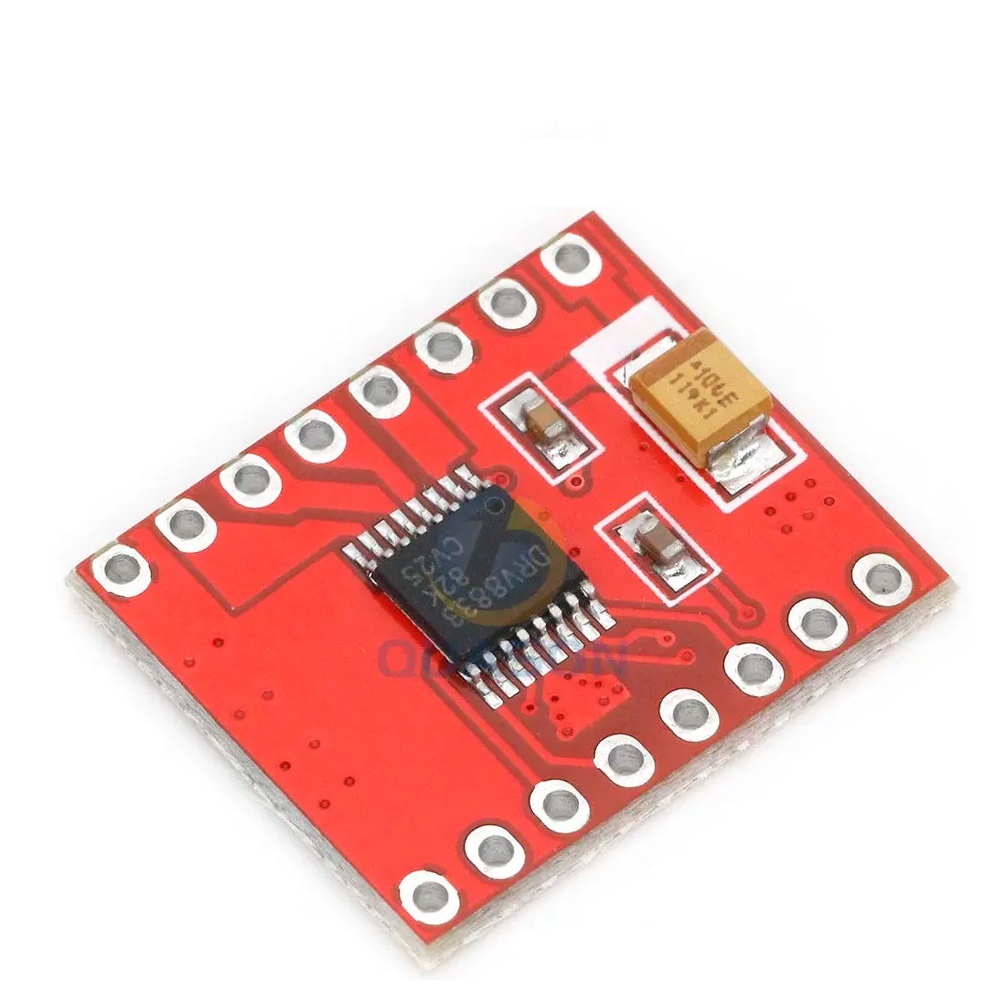

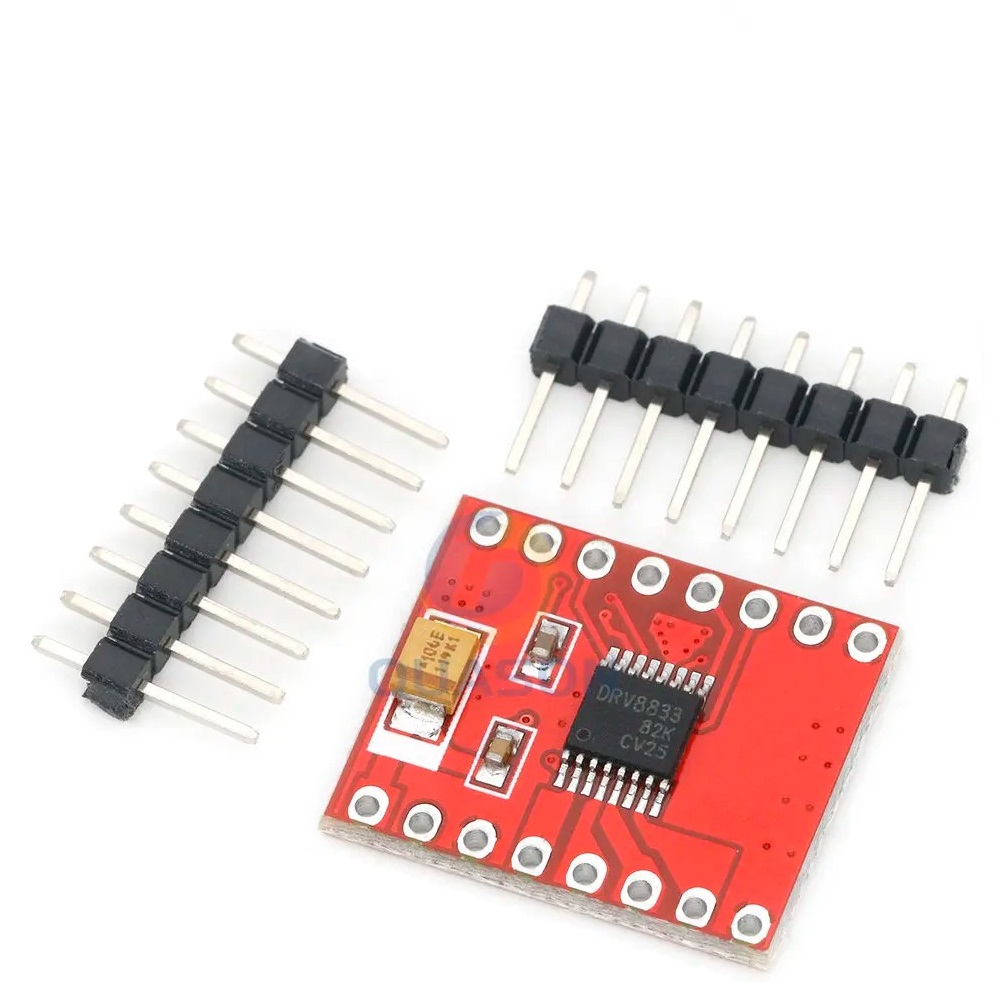

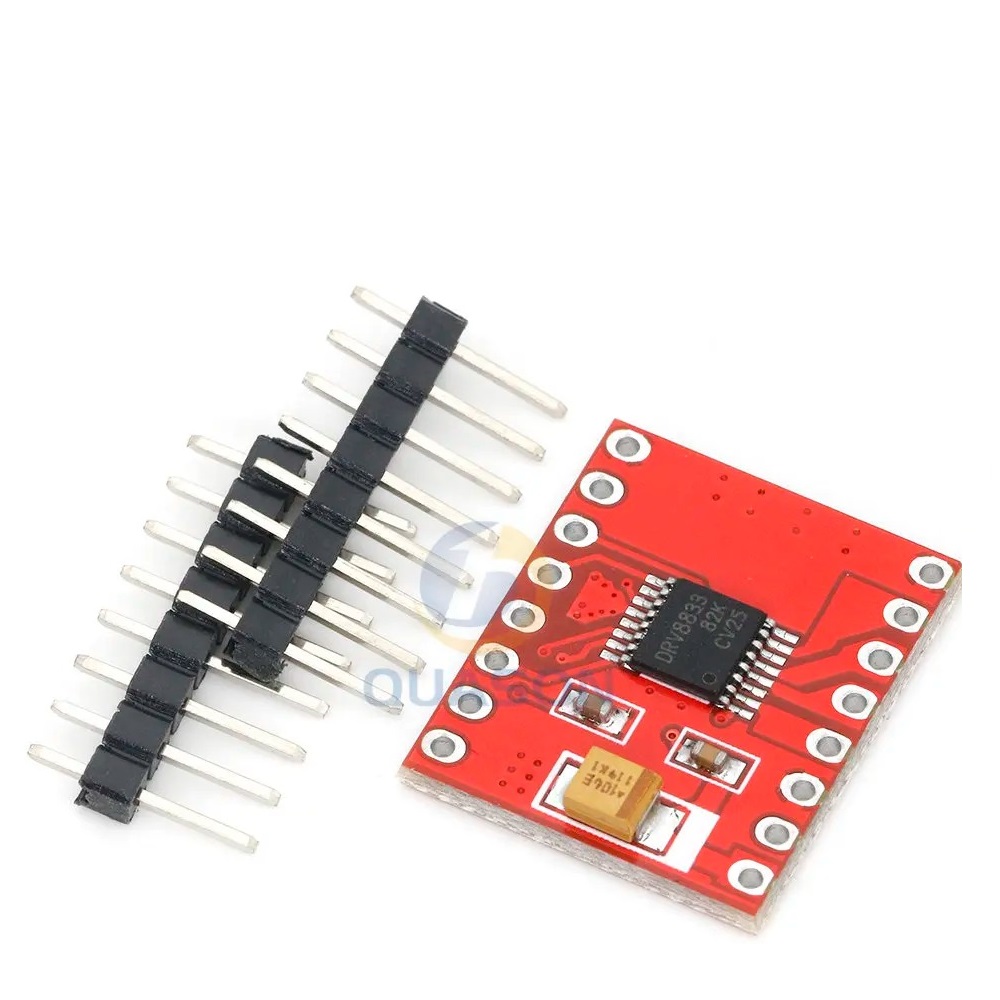

DRV8833 Dual H-Bridge Motor Driver Module – 1.5A Stepper DC Motor Controller Board
High-Performance Motor Control for Robotics & DIY Projects
The DRV8833 Dual H-Bridge Motor Driver is a compact, efficient, and versatile module designed for driving two DC motors or one stepper motor with precision. Ideal for robotics, CNC machines, and various Arduino projects, this board ensures smooth motion and robust performance.
Key Features
- Dual H-Bridge Motor Driver: Control 2 DC motors or 1 bipolar stepper motor.
- Wide Voltage Range: Operates from 2.7V to 10.8V for flexible usage.
- High Output Current: Up to 1.5A per channel (peak 2A) for powerful motor control.
- PWM Control: Supports speed and direction control with PWM inputs.
- Low Power Mode: Built-in sleep mode for energy efficiency.
- Thermal & Overcurrent Protection: Keeps your project safe and operational under various conditions.
- Compact PCB: Ideal for space-limited projects.
Specifications
- Driver IC: Texas Instruments DRV8833
- Motor Channels: 2 (independent)
- Operating Voltage: 2.7V – 10.8V
- Continuous Current: 1.5A per channel
- Peak Current: 2A per channel
- Logic Voltage: 2.7V – 5V

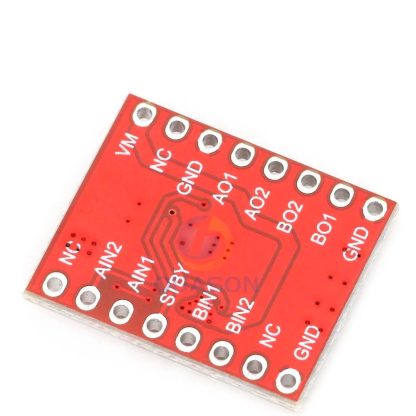

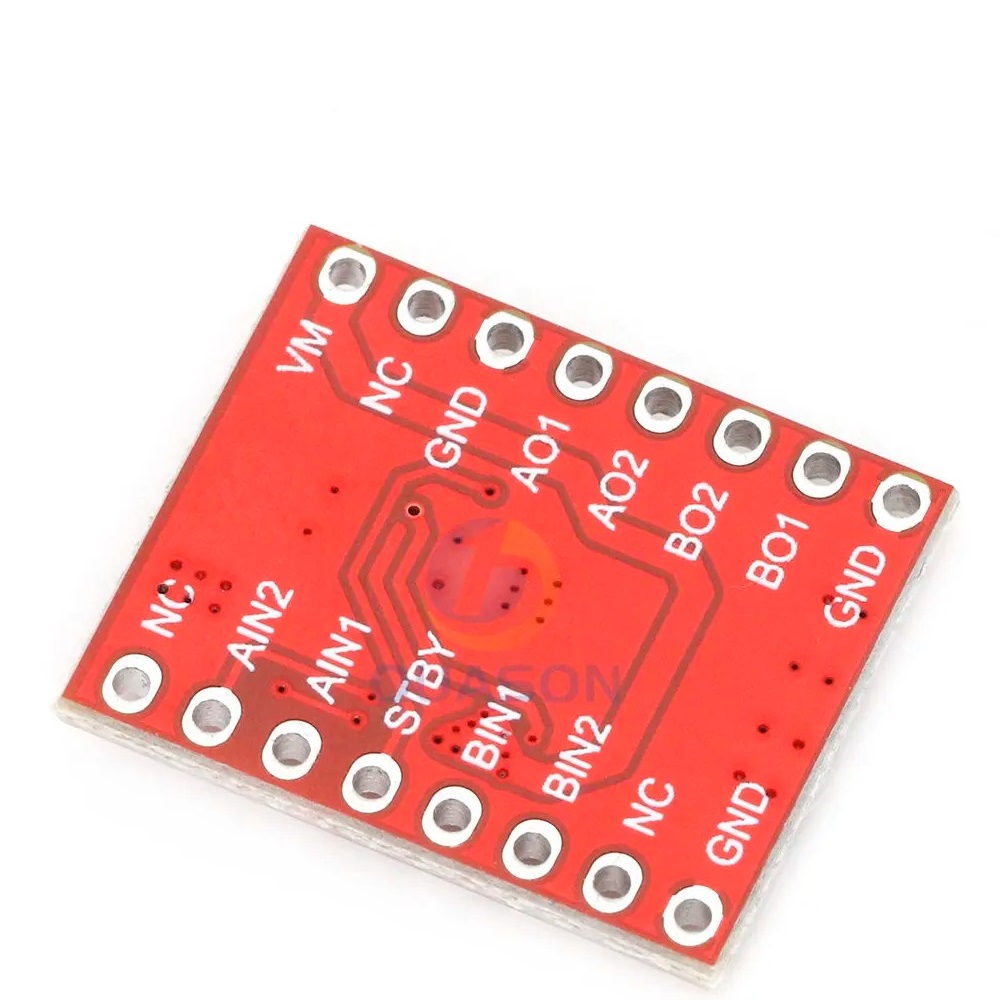

- Control Interface: PWM, Direction Pins
- Protections: Short Circuit, Overcurrent, Thermal Shutdown
- Dimensions: Approx. 16.5mm x 13mm
Applications
- Robotics projects
- Arduino and Raspberry Pi motor control
- Smart cars and RC vehicles
- 3D printers & CNC machines
- Automation systems
- DIY electronics
