Description

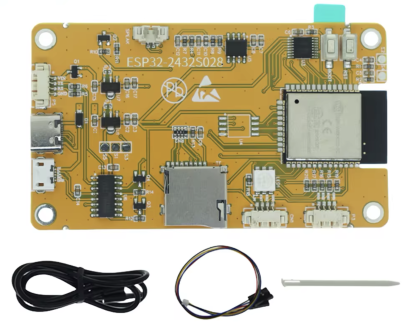

The ESP32 Arduino LVGL is a development board that can be used to create UIs with LVGL. Here are some of its specs:
- CPU: Dual-core 32-bit CPU with a main frequency of up to 240 MHz
- Memory: 520 KB SRAM and support for up to 4 GB TF card
- Connectivity: Wi-Fi 802.11b/g/n/e/i and Bluetooth 4.2
- Interfaces: UART, SPI, I2C, PWM, ADC, and DAC
- Power consumption: Deep-sleep power consumption as low as 6 mA
- Display: Some models have an IPS LCD TFT module touch screen
- Other features: Built-in flash, support for OV2640 and OV7670 cameras, and picture Wi-Fi upload

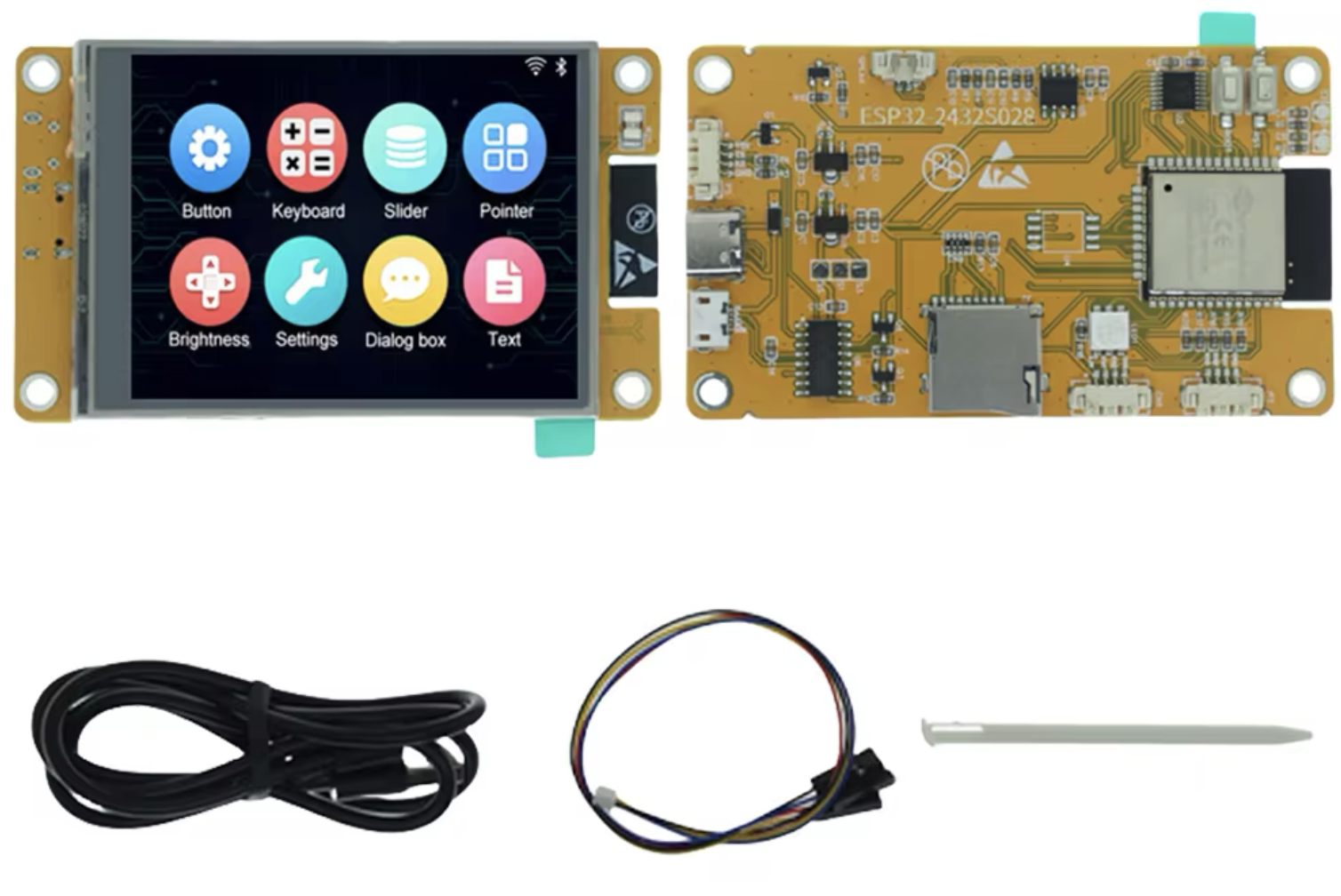

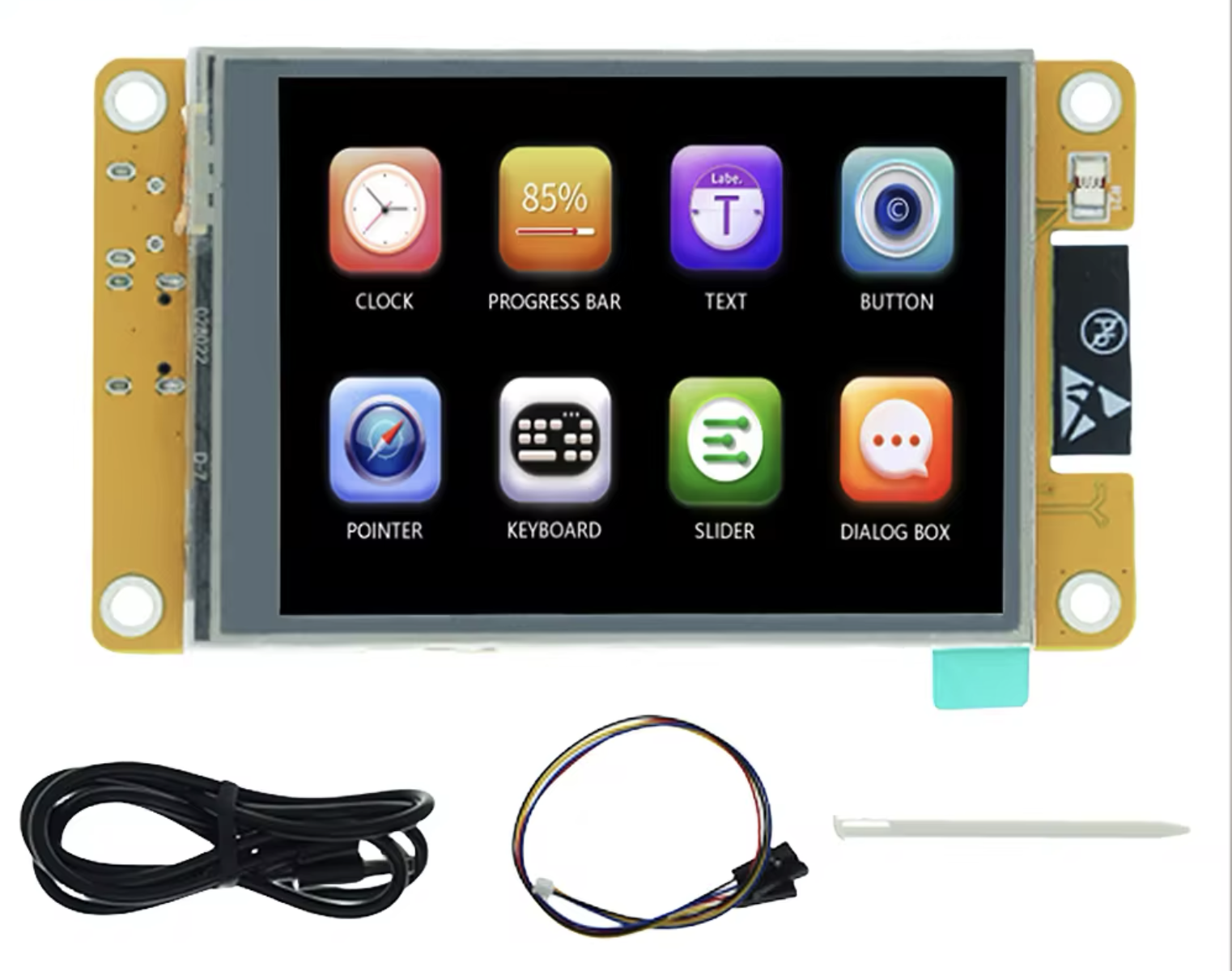

This ESP32 Arduino LVGL WIFI & Bluetooth Development Board with a 2.8″ TFT display is an ideal choice for anyone looking to create innovative and interactive electronic projects. With its RGB 65K display colour and 320 * 240 (pixels) resolution, this TFT display provides a clear and detailed visual output. The board is about 50x86mm/1.96×3.38inch in size and weighs about 50g. It has a working temperature of -20 “C~70C and a storage temperature of -30 “C~80C. The board is powered by 5V and has a power consumption of about 115mA. It features a pressure sensor and an effective display area of 43.2 * 57.6 (mm). This development board is perfect for those looking to create exciting and unique electronic projects.
