Description

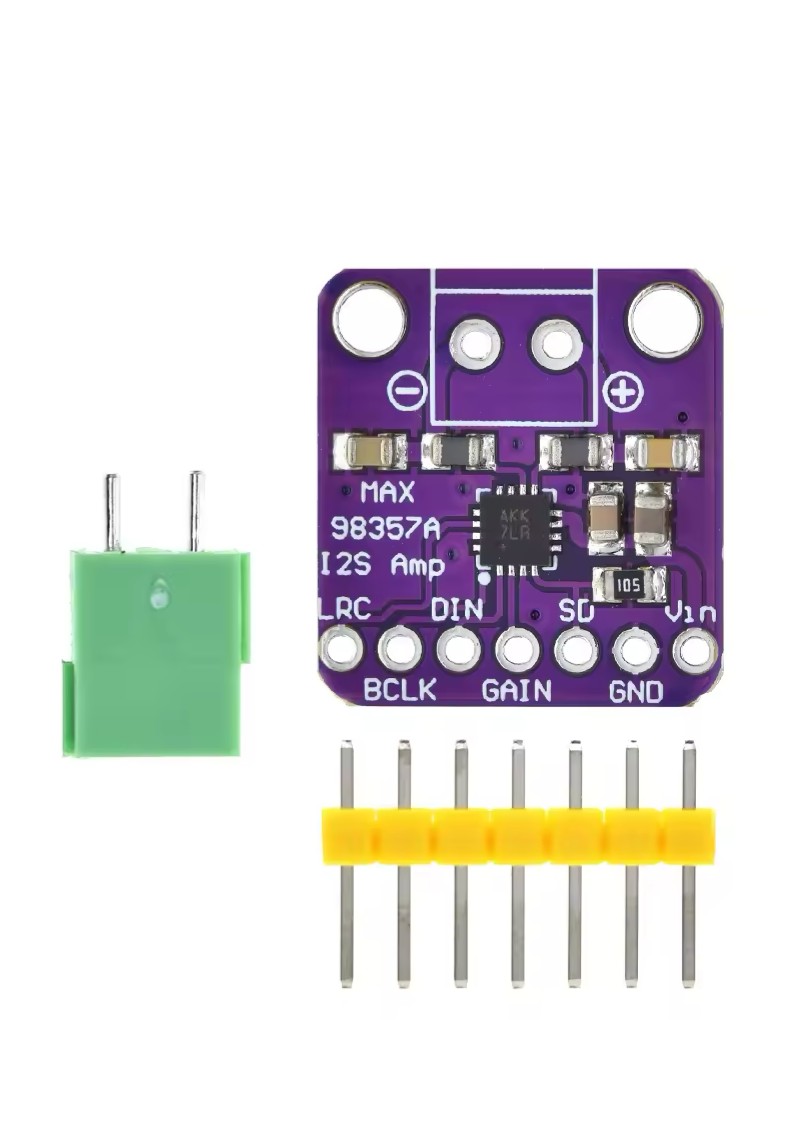

HIGH QUALITY MAX98357 MAX98357A I2S 3W CLASS D AMPLIFIER
Key Features
- All-in-one I2S Decoder and Class D Amplifier
- Powerful output: 3.2W into 4 ohms @ 5V
- Efficient Class D operation with built-in thermal and over-current protection
- Compatible with 2.7V-5.5V DC supply
- Digital Audio Quality with I2S Interface
- Flexible Gain Adjustments (3dB, 6dB, 9dB, 12dB, and 15dB)
Product Overview
The MAX98357 I2S DAC Decoder and Amplifier module is a perfect solution for applications requiring high-quality, compact audio amplification. It accepts standard I2S digital input, which it decodes into analog and amplifies directly to drive a speaker.
This small mono amplifier can deliver an impressive 3.2 Watts at 5V, perfect for battery-powered and portable projects. Do more with less power and achieve efficient sound output with this robust Class D amplifier!
Technical Specifications:
Input: Standard I2S digital audio input.
Output Power: 3.2W into 4 ohms (5V @ 10% THD).
Power Supply: 2.7V to 5.5VDC.
Thermal Protection: Built-in safety features for heat management.
Efficiency: High-efficiency operation due to Class D configuration.
Usage Compatibility:
Works seamlessly with platforms like the Raspberry Pi, Arduino Zero, and other microcontrollers or microcomputers with I2S audio outputs, making it ideal for various projects from DIY audio systems to sophisticated consumer electronics.
Easy Setup:
Manipulate the Gain pin for desired output levels and easily configure audio channel output through the ShutDown/Mode pin, making setup and operation effortless.
Add high-quality sound to your projects with the MAX98357 I2S 3W Class D Amplifier, the choice for audio enthusiasts and makers alike who seek performance and durability.
