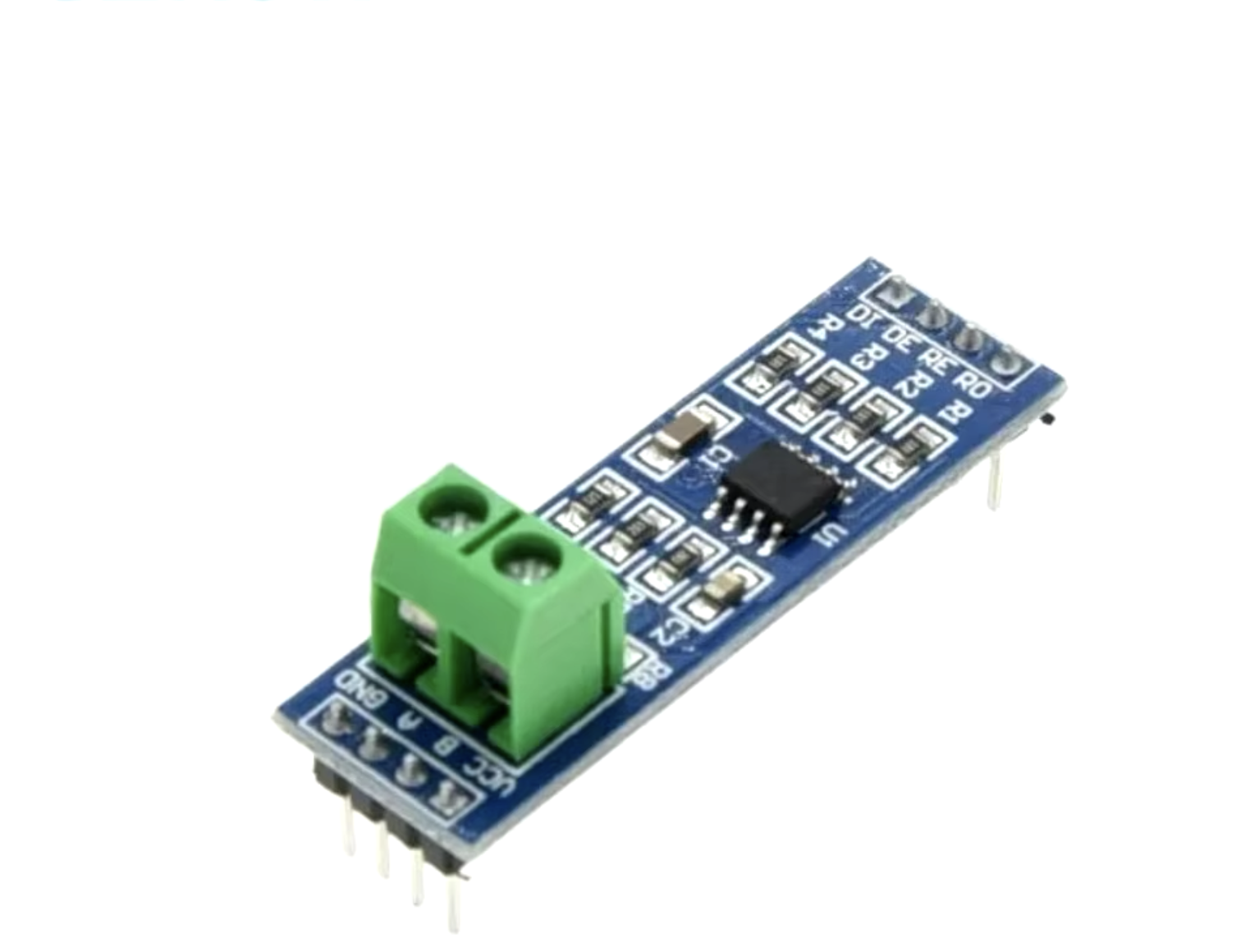

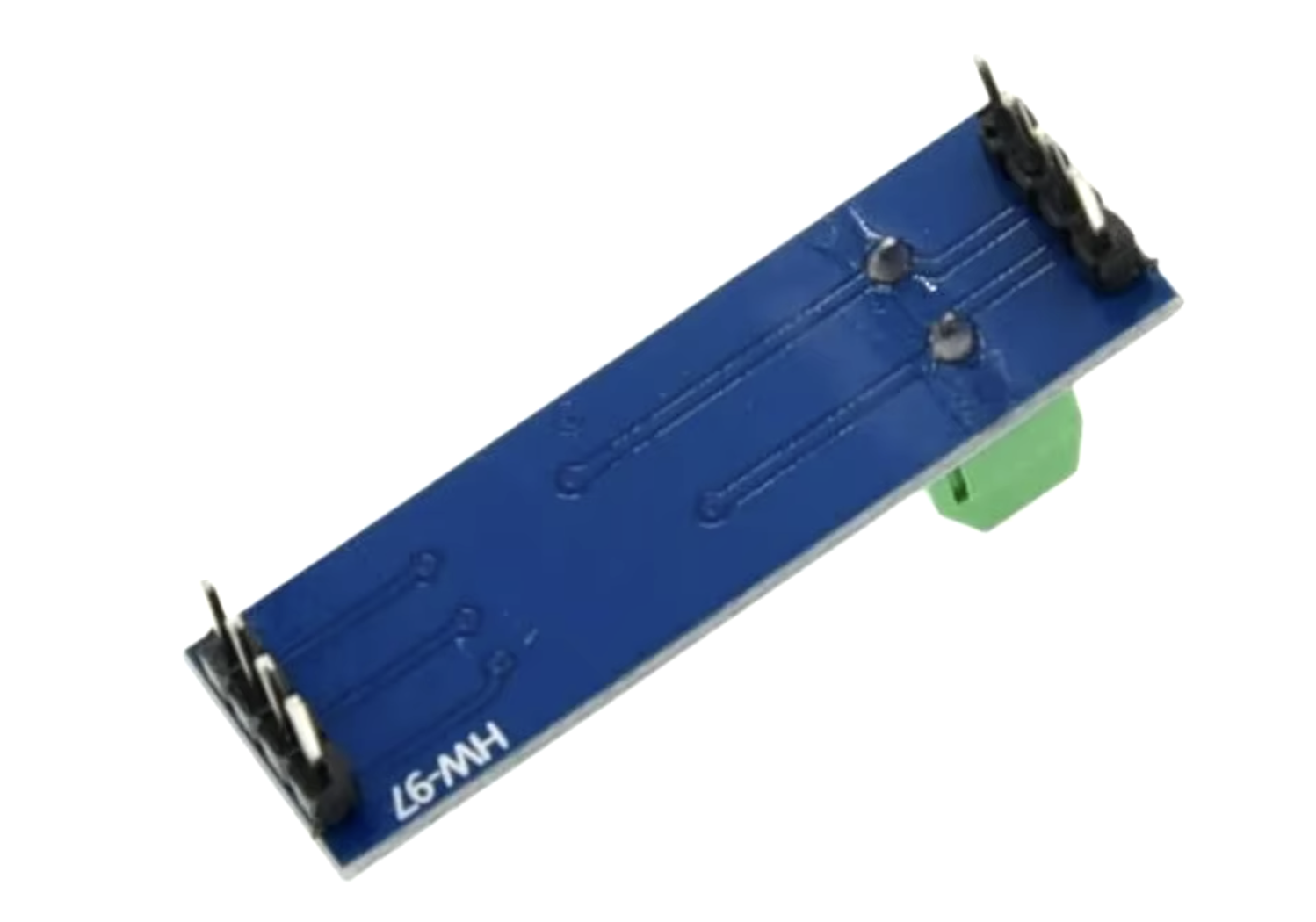

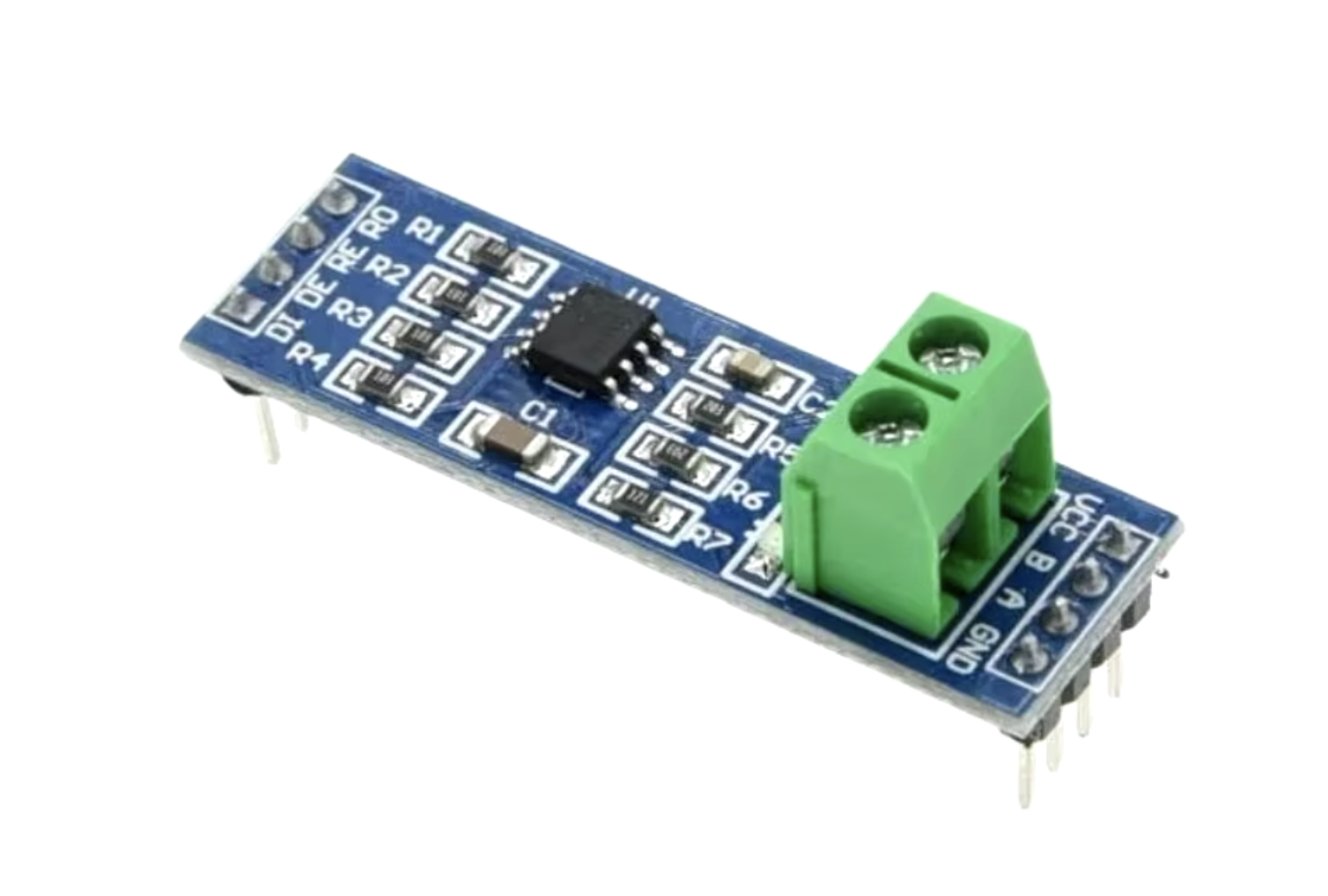

RS485 Module MAX485 TTL Adapter for Arduino Raspberry Pi UART Serial Converter

Enhance your communication projects with this RS485 Module featuring the MAX485 IC, a reliable solution for UART to RS485 signal conversion.
This compact adapter is ideal for long-distance, reliable serial communication between Arduino, Raspberry Pi, and other microcontrollers, enabling
data transfer over greater distances with high noise immunity.

Product Features:

• IC Type: MAX485 – Ensures stable, low-power RS485 communication
• Input Voltage: 5V – Compatible with most microcontroller platforms
• Interface Type: TTL to RS485 – Perfect for serial UART connections
• Communication Range: Up to 1200 meters – Long-distance transmission capability
• Transmission Speed: Up to 2.5Mbps – High-speed data transmission

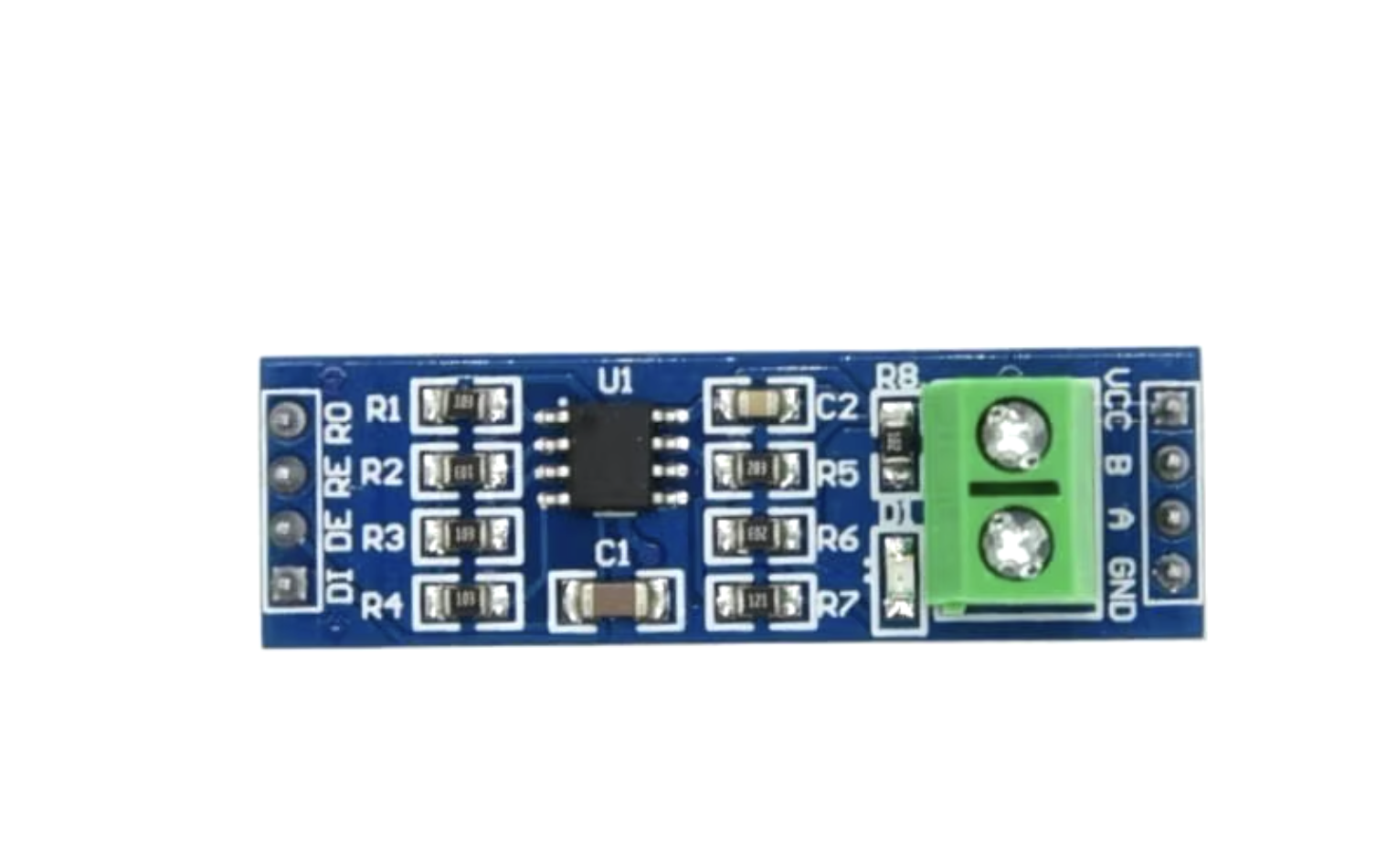

Pinout & Connections:

• VCC: Connects to 5V power supply
• GND: Ground connection
• DI (Data In): TTL data input from microcontroller (TX pin)
• RO (Receive Out): TTL data output to microcontroller (RX pin)
• DE/RE (Drive Enable/Receive Enable): Control pins for switching between transmit and receive modes

Why Choose the MAX485 RS485 Module?

• Reliable Long-Distance Communication – Achieve stable serial data transfer over extended distances, ideal for industrial and remote sensing applications.
• Compact Design – Small size, easy to integrate into your Arduino or Raspberry Pi setups.
• Wide Compatibility – Works seamlessly with Arduino, Raspberry Pi, ESP32, and other microcontroller platforms.
• Efficient Signal Conversion – TTL to RS485 conversion with minimal interference for reliable data integrity.

Applications:

• Industrial automation and remote monitoring systems
• Sensor data transmission in long-range IoT networks
• Robotics and telemetry projects
• Point-to-point communication for multiple microcontrollers

Technical Specifications:

• Operating Voltage: 5V
• Current Consumption: Low power with minimal drain on power sources
• Transmission Distance: Up to 1200 meters (with correct cabling and setup)
• Max Data Rate: 2.5Mbps
• Dimensions: Compact and lightweight for easy mounting

Package Includes:

• 1 x RS485 MAX485 Module TTL to RS485 Serial Converter

Empower your projects with this versatile, high-quality RS485 module, ideal for industrial, automation, and IoT applications that require robust and long-distance communication!
