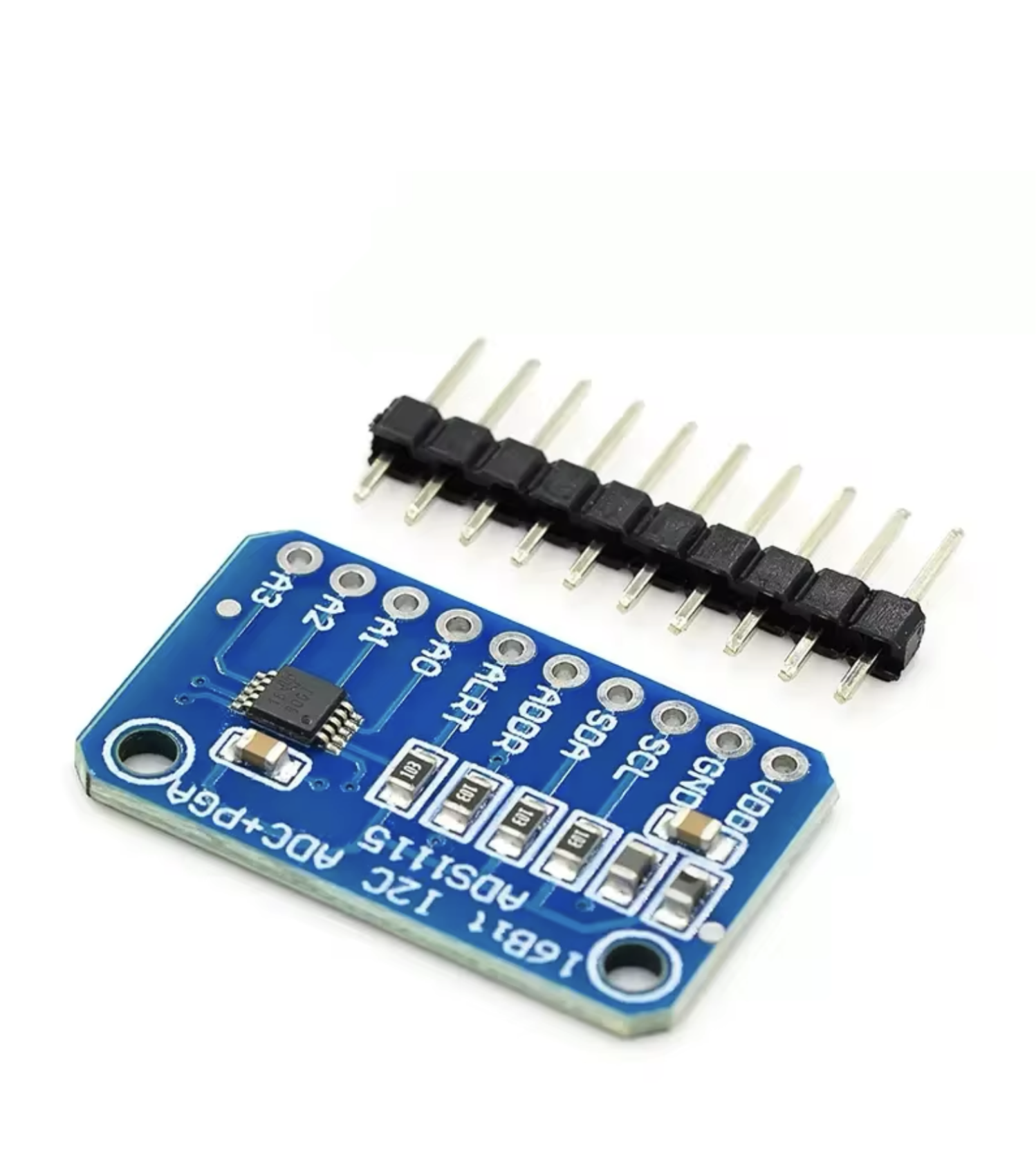

Unlock High Precision in Your Projects with the ADS1115 Module!
Looking to enhance your electronics projects with superior data accuracy? The ADS1115 16-bit ADC Module offers precision analog-to-digital conversion and seamless integration with popular microcontrollers including Raspberry Pi and Arduino. Ideal for advanced users and hobbyists alike!
Key Features:
- 16-bit High Precision ADC: Capture detailed analog input with high accuracy.
- Multiple Channel Options: 4 single-ended or 2 differential input channels.
- I2C Interface: Easy integration with most microcontrollers using I2C.
- Flexible Voltage: Compatible with 3.3V or 5V power supply.
- Selectable I2C Addresses: Supports multiple modules on the same I2C bus (up to 4).

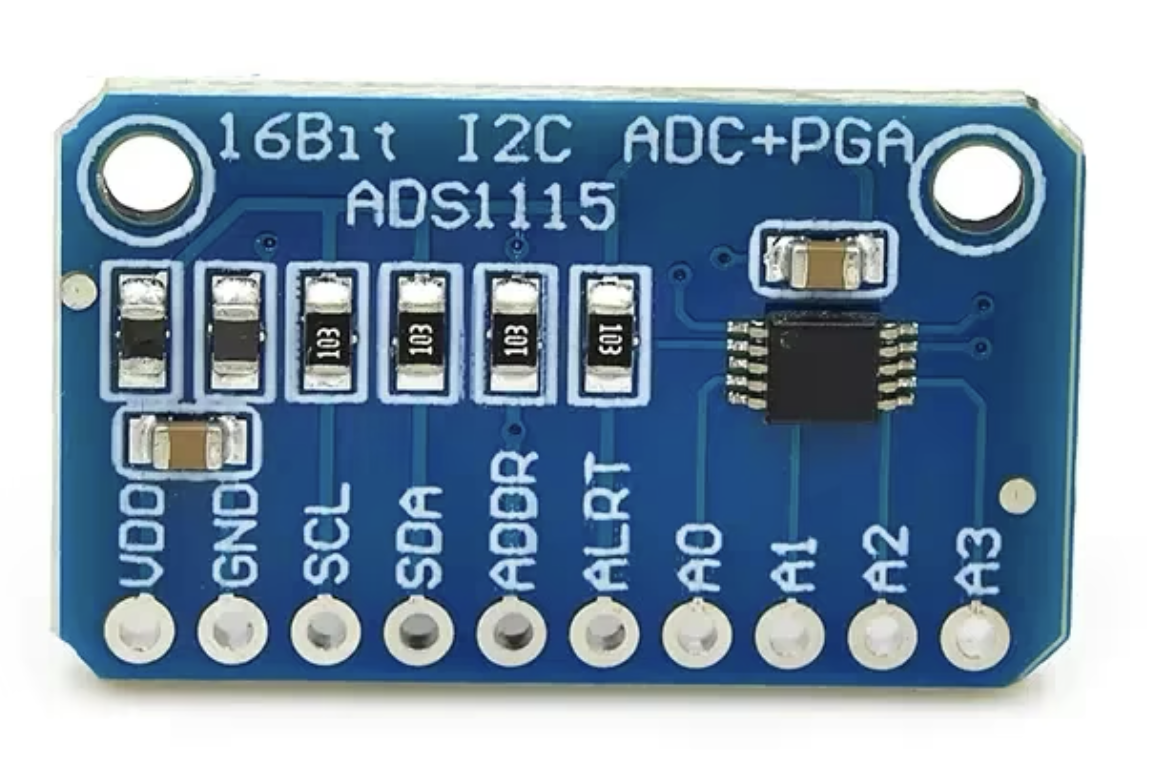

Pin Configuration:
- VCC: Connect to your microcontroller’s power supply (3.3V or 5V).
- GND: Ground connection.
- SCL (I2C Clock): Connect to the SCL pin of your microcontroller.
- SDA (I2C Data): Connect to the SDA pin of your microcontroller.
- ADDR (Address Selection): Allows flexibility in device addressing.
- ALRT (Alert/Data Ready): Useful for interrupt-driven acquisition.
- A0-A3: Analog inputs for connecting sensors or voltage sources.
Note: Ensure to review the datasheet and compatibility with your microcontroller before purchase.
Perfect For:
- Robotics
- Weather Stations
- Home Automation Systems
- Data Logging
- Educational Projects
Don’t miss out on this essential component for your precision projects! Buy Now!
