Description

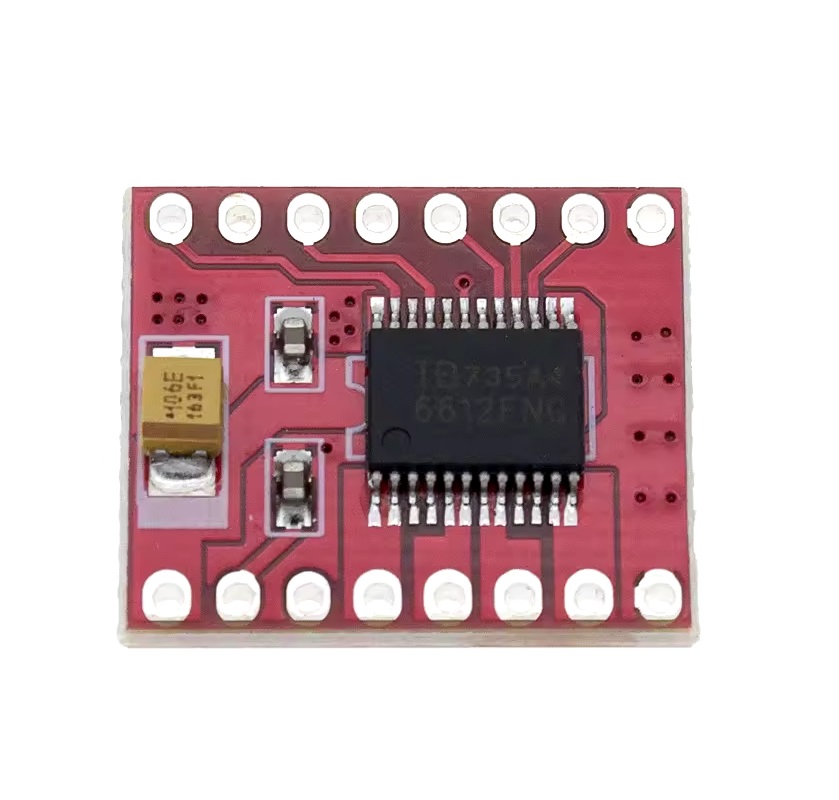

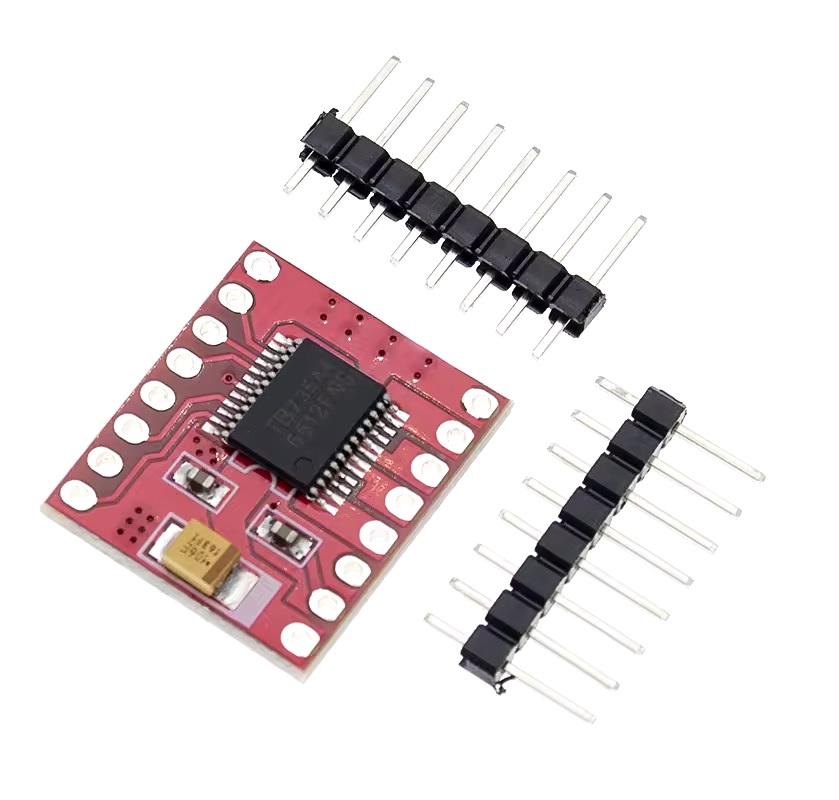

TB6612FNG Motor Driver Module
Unlock the potential of your robotics and engineering projects with the powerful and versatile TB6612FNG Motor Driver. Ideal for hobbyists and professionals alike, this compact board is perfect for controlling up to two DC motors with precision and ease.
Product Features
- High Power Output: Manage up to 1.2A continuously per channel with peaks up to 3.2A.
- Dual Motor Control: Independently control two motors with simple PWM input up to 100kHz.
- Multiple Control Modes: Choose between clockwise, counter-clockwise, short-brake, and stop functionalities.
- Voltage Compatibility: Logic supply (VCC) from 2.7V to 5.5V and motor supply (VM) up to a maximum of 15V.
- Energy Efficient: Standby control feature to conserve power when not in operation.
- Safety Features: Thermal shutdown and low voltage detecting circuits to protect your setup.

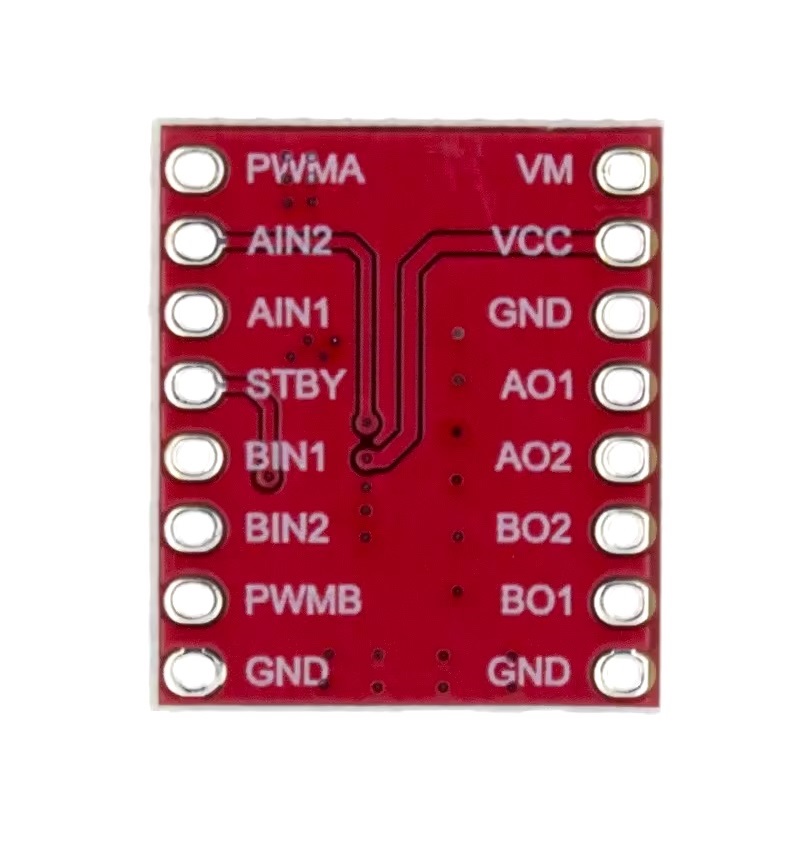

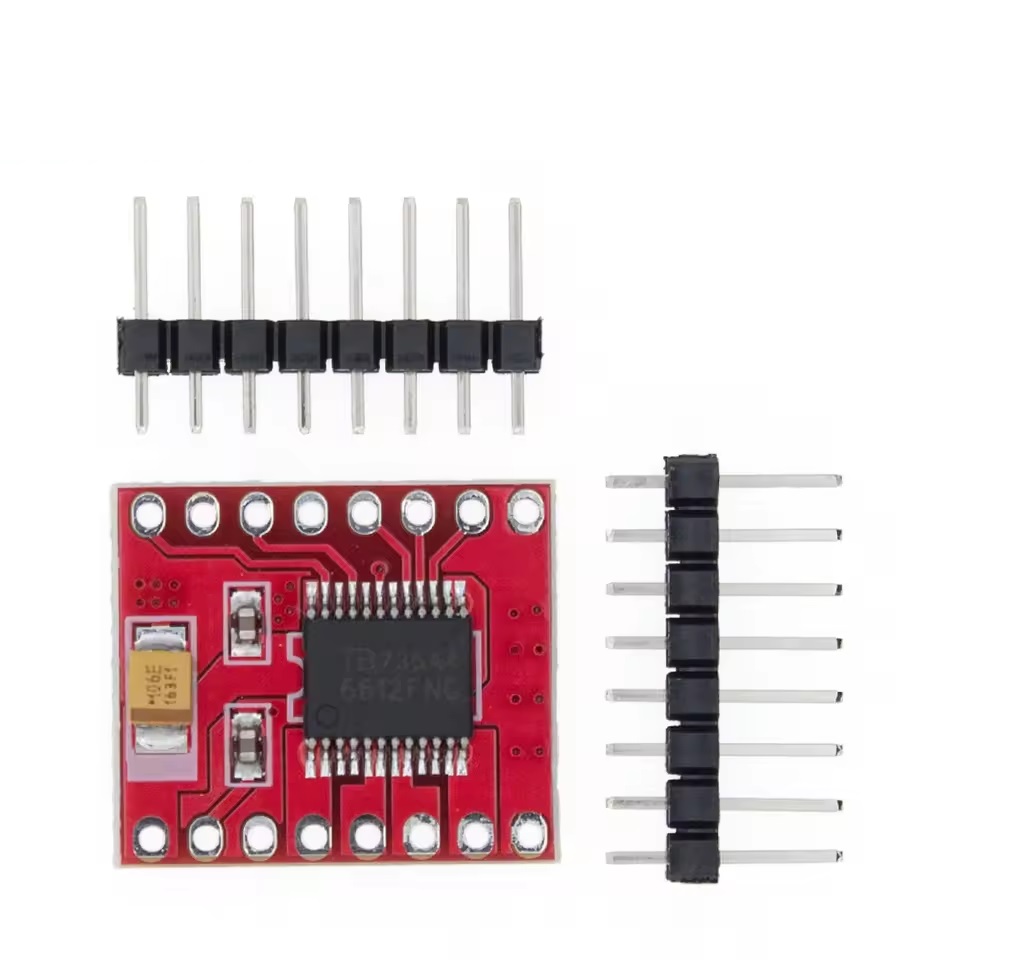

- Convenient Pin Layout: All pins are broken out to standard 0.1″ spaced headers for easy connectivity.
- Integrated Decoupling Capacitors: Enhances the stability and performance of your motor operations.
Technical Specifications
| Parameter | Specification |
|---|---|
| Power Supply Voltage (VM) | 15V max |
| Logic Supply Voltage (VCC) | 2.7-5.5V |
| Output Current (Iout) | 1.2A (Average) / 3.2A (Peak) |
| Control Modes | CW, CCW, Short Brake, Stop |

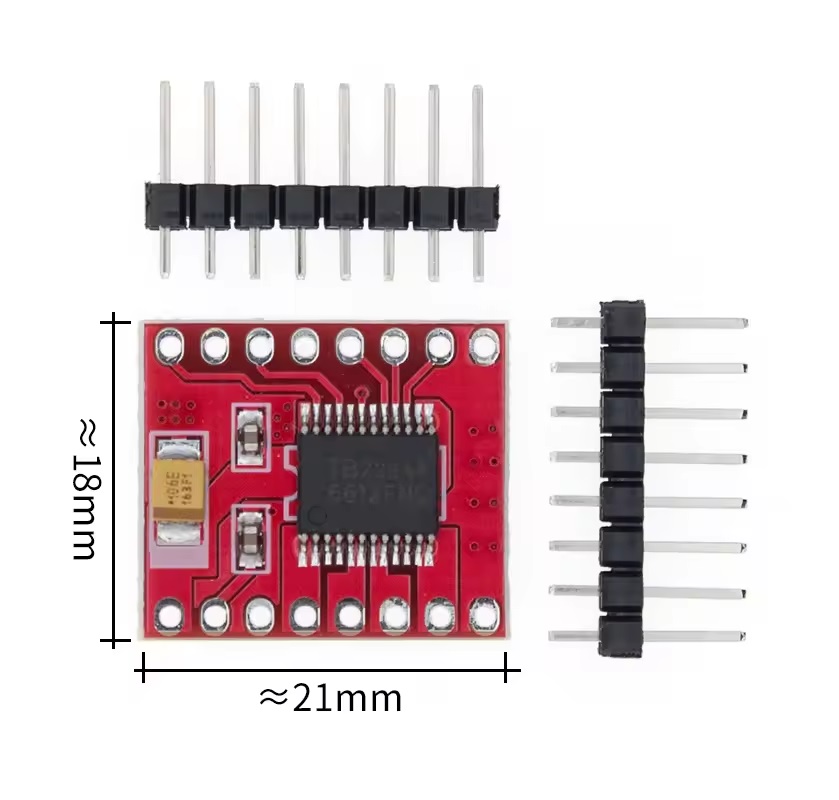

| Dimensions | 0.8 x 0.8 inches |
Why Choose the TB6612FNG Motor Driver?
This motor driver module is not just powerful and versatile, but also user-friendly and robust, making it an essential component for any DIY electronics enthusiast or professional looking to boost their project to the next level. Whether you are building a small robot or a custom automation solution, the TB6612FNG provides reliability and performance.
